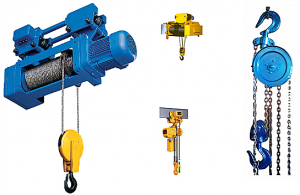

Electric Wire Rope Hoist

We designed Electric Wire Rope Hoist as per IS 3938 Class II & Class IV duty operations. Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & movable on curved tracks can manufactures on request.?

Rope Drum:

Steel Fabricated/Seamless Pipe Drum is machine grooved as per IS-3938.?

Wire Rope:

Usha Martin make Steel/Fiber core Wire Rope as per IS:2266.?

Gear Box:

Complete gear train for hoisting is in an enclosed cashing provided with Grease/oil lubrication. The gears are made from alloy steel.?

Lifting Hook (IS:3815 / IS:15560):

Forged steel Shank Type hook with Safety Latch.?

Trolley:

Runner Wheel can be factor adjusted for Various size I-Beams, trolley, Motor driven, Hand Chain driven, Pull Push type or Curved type trolley can be provided as per requirements.?

Motor:

Motor are of Squirrel cage, 40% / 60% CDF rating as per IS:325. Manufactured by Bharat Bijlee/Crompton/ABB/Marathon/JAPS make.?

Hoist Brake:

The Hoist Motor is fitted with in Electromagnetic brake of Shoe/Disc/Hydraulic type.?

Limit Switch:

Snap action type Limit Switches are provided to avoid over hoisting and over lowering.?

Control:

The hoist is controlled from ground level by means of pendent type Push Buttons. Control panel is of enclosed type, easily removable cover complete with Transformer Contactors and Fuses.
