Screens

We are instrumental in manufacturing and supplying Fixed And Mechanical Screens. All these screens are used by the customers across the region for removing suspended particles from the waste water. The products we are offering are suitable for large sewage or industrial effluent treatment plants and automatically separates the suspended particles present in waste water. We also offer these screens in various specifications and sizes, in order to meet the diverse requirement of our esteemed clients. Some of the specifications of these products are mentioned as under:

Coarse screens: 10 mm to 50 mm gaps for removing large objects pieces of wood,

textiles etc.

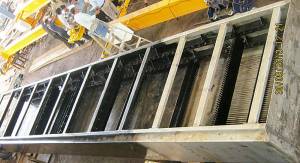

The Bar/Rack/Wire mesh Screen move vertically up or down in guide channels which are fixed to the side walls of the inlet chamber. Screen have lifting lugs for lifting with electrical hoist. The side of screen have replaceable wear shoe & roller to move screen smoothly in guide channel.

?

Design Advantages:

Tapered bars with narrow upstream aperture capture material at the surface and reduce the    risk of material jamming.
Screen bars are inclined 70 to 84 degrees to horizontal to increase effective screening area.
Electrical indication of overload is provided
Suitable for channels substantially below grade.
Raking types contact the screen at an angle greater than 90 degrees to lift screening from the bars.
Easy to adjust / replace individual teeth.
M.O.C. - S.S. 304,316 / M.S.
